To be able to use anthropometric data in the design process, we created the 3D HUMAN MODELS. With these models, the designer has great insight into the size and volume differences. Especially when different models are put in the same pose and made semi-transparent.
To be able to use anthropometric data in the design process, we created the 3D Human Models. With these models, the designer has great insight into the size and volume differences. Especially when different models are put in the same pose and made semi-transparent.
3 Models (P5, 50 and 95) placed in the same seating position.
Example of some dimensions used to create the child models.
Car Seat Development
SLIMDESIGN set out to improve the way we travel with babies. During the analysis, they came to the conclusion that there is a contradiction between the crash safety and the ergonomics. With this car seat system, they aimed to resolve this contradiction and trigger a meaningful innovation in child seats. See more project details on the SLIMDESIGN website.
The 3D Human Models can be used to validate the product design during the 3D CAD stage. The Child Restraint System Models can be used to validate the seat design and create clear documentation. It can be submitted to the homologation body to support the claim that the designs apply to the regulations.

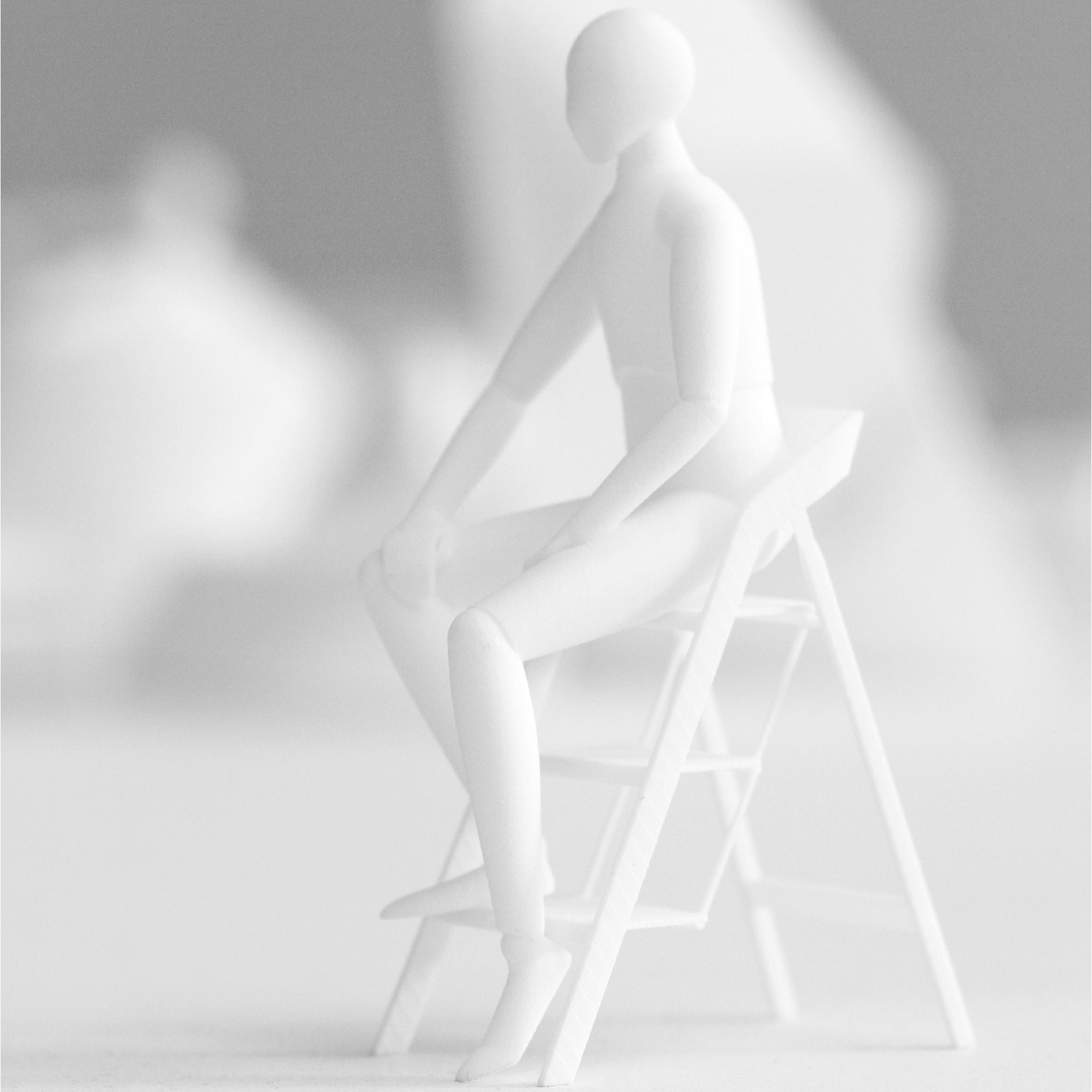

Scaled rapid prototypes
The 3D Human Models can be positioned in any pose and 3D printed to scale. It shows the human interactions and gives the object a size reference.
Furniture designs by Maarten Olden
Exhibition Stedelijk Museum Amsterdam
The interaction between the product and its user can be visualized and used in presentations and user manuals.
Model body parts and joints
Model manipulation I Modeling strategy
Start with the bigger body parts and then position the extremities. Details like the hand and foot are the last step of the positioning. After you reached the desired position of a part, right click and set it to ‘Fix’. This will sometimes over-define the assembly for the time of the positioning but will disappear as soon you set this part back to ‘Floating’.
Note: Please make a back-up if you want to return to the original position after editing the posture.
Left mouse click and move
to tilt the body part
Right mouse click and move
to pan the body part
Model manipulation I Controlling body parts in detail

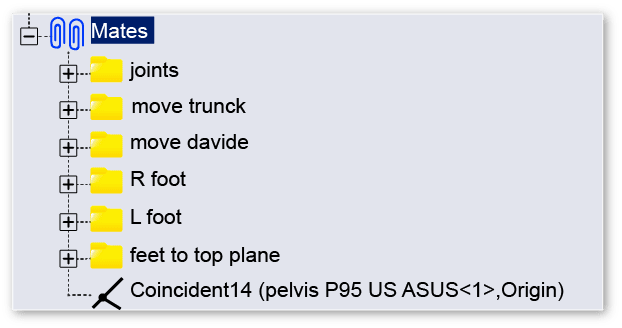

In order to simplify the modeling process, most body parts move freely and can be directly manipulated by clicking and dragging them but fine details such as ‘trunk movement’. Hands and feet are controlled by adjusting mates. The mates can be found at the bottom of the model tree of each main- and subassembly.
Under the body folders, you can open ‘mates’ in which the folders sorted to the body parts. Adjust these mates for complete control over the 3D Human Model. The folder ‘Joints’ contains the mates that hold the body parts together. Do not change these!
Model manipulation I Detailed manipulation
To edit the sub-assemblies from within the main assembly:
1) Right-click the sub-assembly you want to change
2) Select ‘Edit assembly’
Model manipulation I Within another assembly
1) Use the Insert components’ to add the 3D Human Model into your assembly
2) Move and rotate the pelvis into the correct position
3) Fix the model by right-clicking the assembly and pressing ‘Fix’
Model manipulation I Within another assembly
To move the parts within an assembly, the model needs to be set to flexible:
1) Right-click the model and select ‘Component Properties’
2) Set ‘Solve as’ to ‘Flexible’
3D Human Model can now be manipulated as described before.
Every model comes with an validation sheet. It provides full insight into the source data, its origin and the measurements used to build the model.
Together with Dr. Johan F.M. Molenbroek, Associate Professor Applied Ergonomics at the Delft University of Technology, the decision was made to use the measurements of the individual body parts. The consequence are discrepancies in the measurements of combined body parts (like the elbow hight sitting). These deviations are also shown in the sheet.
If you would like to obtain the student version free of charge (students from affiliated educational institutions receive a free download code), please let your teacher or professor place a description of the tool and a link to www.3dhumanmodel.com on an open part of the education website. If the link is operational we will provide a free download code for all the students.
Over the years several different people have contributed to the development of the 3D Human Model. We would like to especially thank the following persons for their input and effort: Chris Spaander (who created the latest version), Nico Peet, Maria Hock, Marnick Menting.
Dr. Johan F.M. Molenbroek, Associate Professor Applied Ergonomics at the Delft University of Technology for his support, scientific input, and validation.
SLIMDESIGN is a well-known design studio from Amsterdam. They developed this tool to integrate antropomatric data in their development processes. They put the tool online, so others developers can also benefit from their work. The created funds are used to improve the tool. The latest development (on request of sponsors) was to increase the usability to CATIA, CREO and NX.
